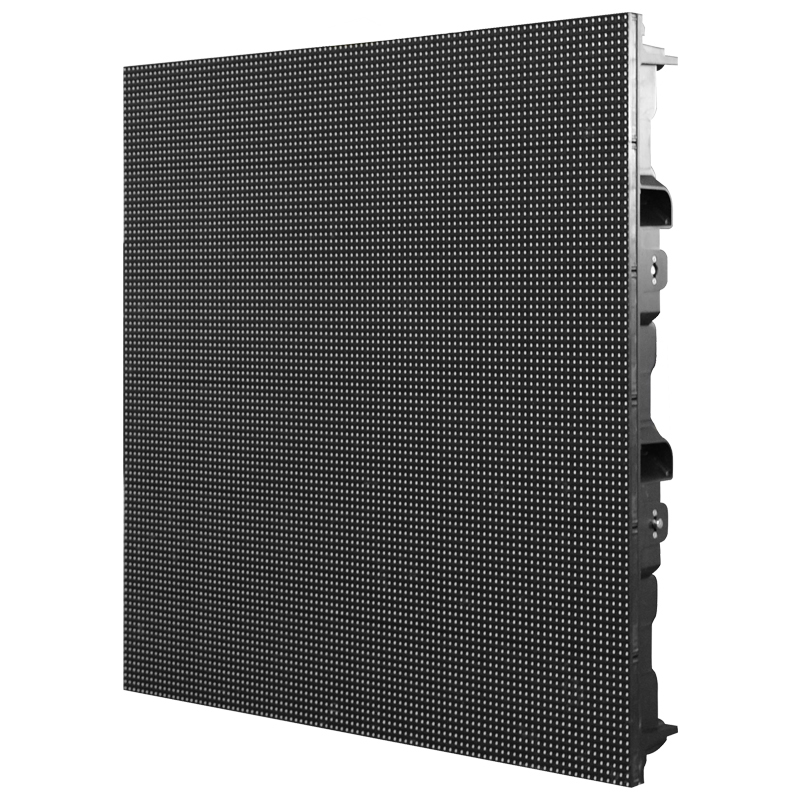

OA (outdoor aluminum)(P4/P5/P5.92/P8/P10)

Outdoor Display OA (outdoor aluminum)

OA series，outdoor fixed front and back Service Design. Fast lock design for easy installation and maintenance.die-cast aluminum material, ot only bring down warehouse cost but also save shipping and maintenance cost.

Product advantages:

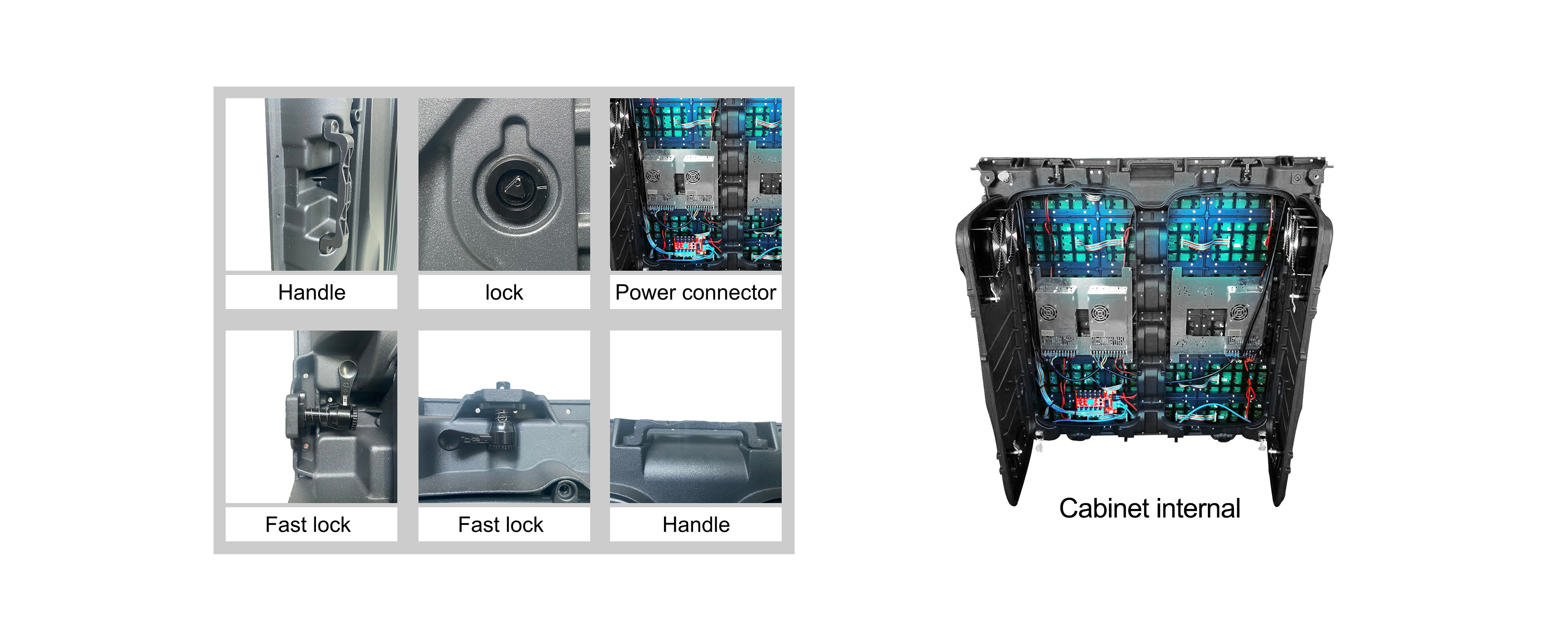

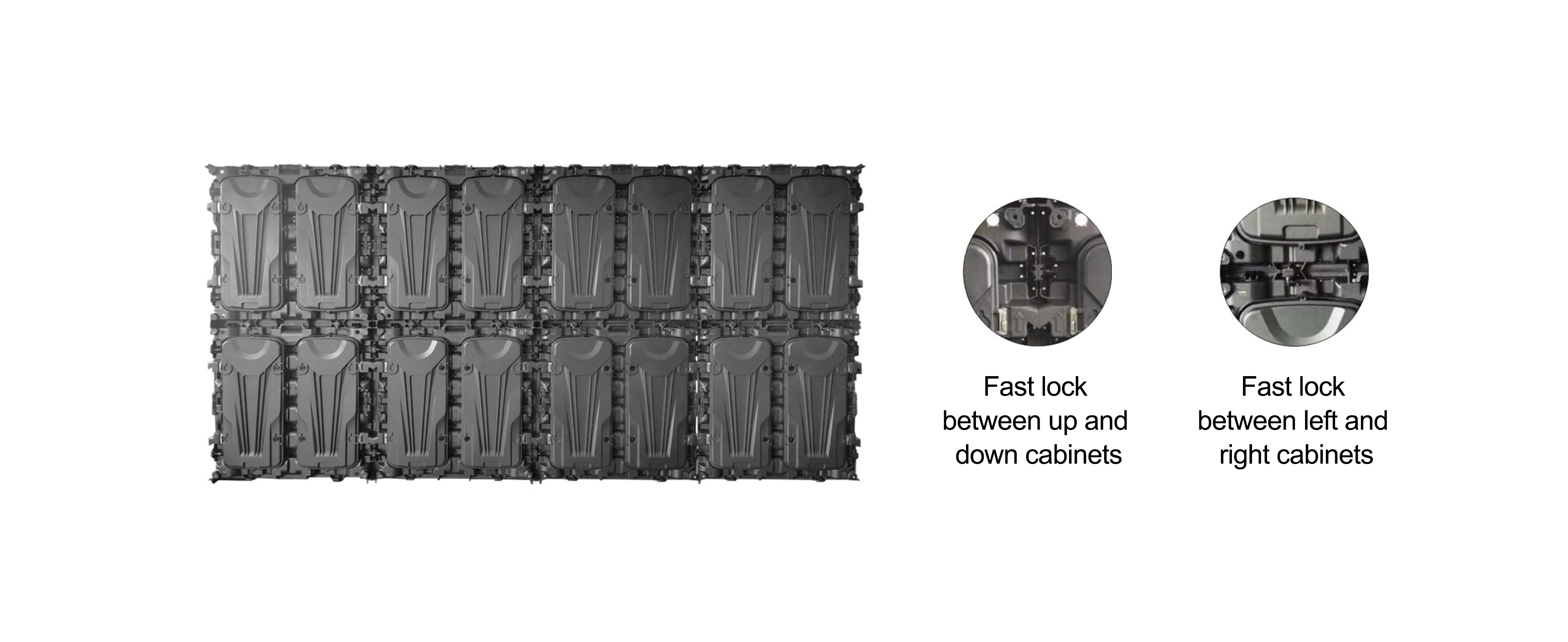

Fast Lock Design,easy for installation and maintenance
Stitching Details
Module, control system front&back maintenance

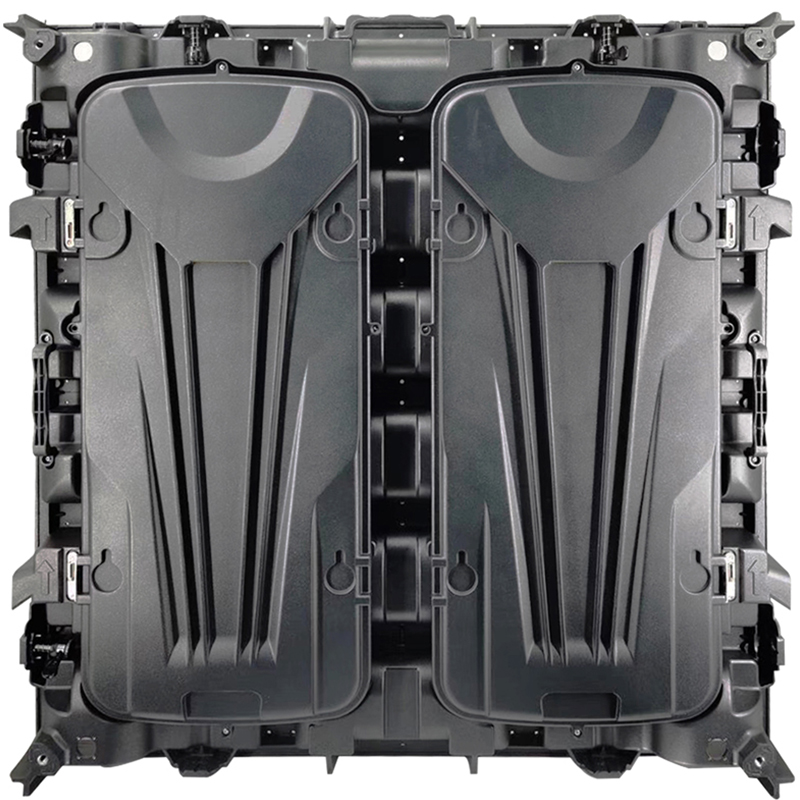

Die Casting Aluminum Cabinet with high anti-corrosion, IP65/IP54 Rating.
High refresh rate，high gray scale
Standard products not only bring down warehouse cost but also save shipping and maintenance cost.

Get A Quote

Product Series Model


P4

P5

P5.92

P8

P10

Technical Parameters

Outdoor Display OA (outdoor aluminum)

  Outdoor
Pixel Pitch P4 P5.33 P6.67 P8 P10
LED lamp SMD2727 SMD2727 SMD2727 SMD2727 SMD2727
Density 62500dots/m2 35344dots/m2 22500dots/m2 15625dots/m2 10000dots/m2
Brightness 6000nits 6000nits 6000nits 6000nits 6500nits
IP rating IP65 IP65 IP65 IP65 IP65
Cabinet Materiel Die-casting Aluminum Die-casting Aluminum
Scan 1/10scan 1/8scan 1/5scan 1/4scan 1/2scan
Module weight 1.6kg 1.6kg 1.6kg 1.6kg 1.6kg
Cabinet Weight 28kg 28kg 28kg 28kg 28kg
Module size 320*320mm 320*320mm 320*320mm 320*320mm 320*320mm

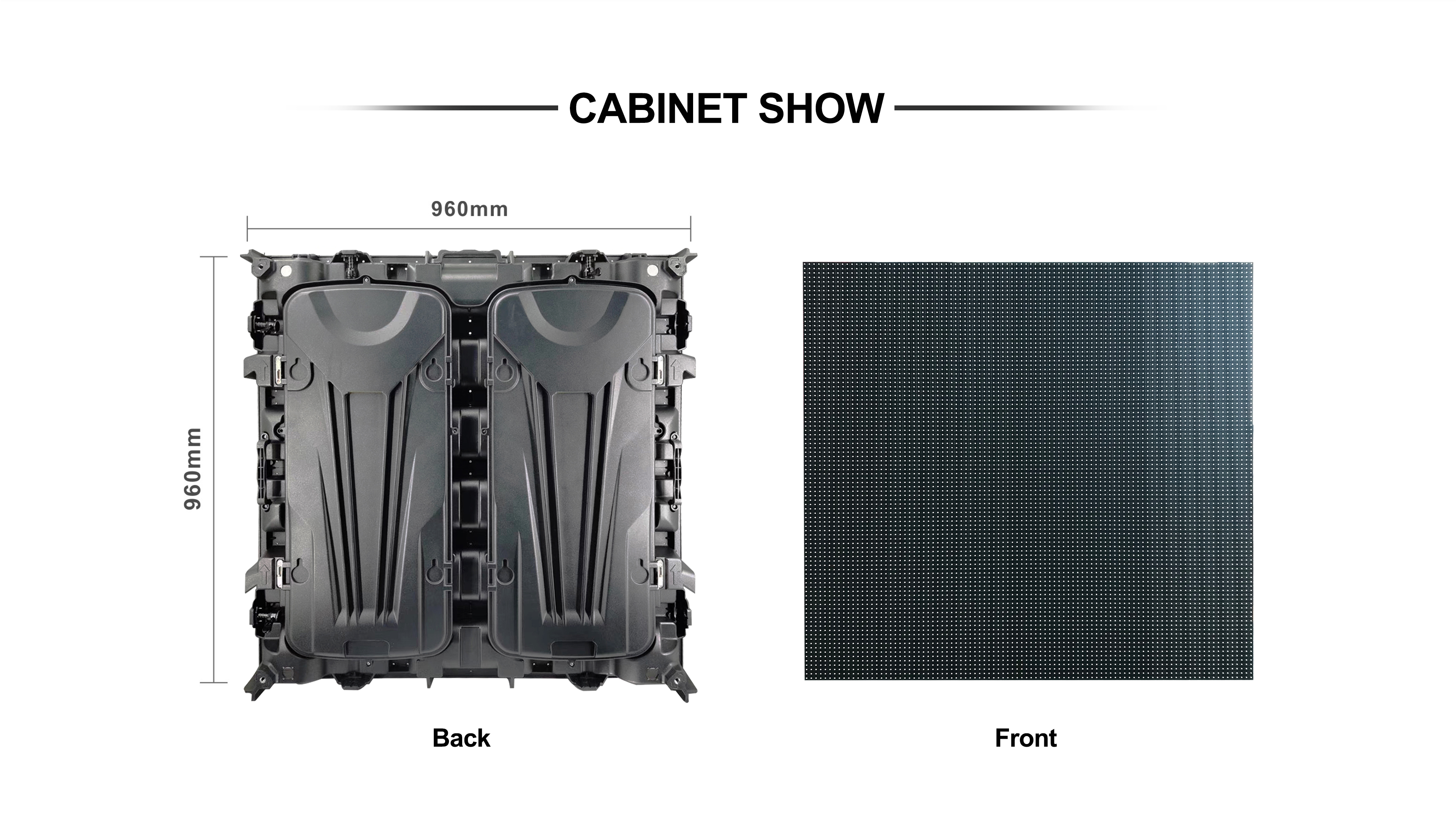

Cabinet size 960*960*120mm 960*960*120mm 960*960*120mm 960*960*120mm 960*960*120mm
Module pixel 80*80dots 60*60dots 48*48dots 40*40dots 32*32dots
Cabinet pixel 240*240dots 180*180dots 144*144dots 120*120dots 96*96dots
Max Power 850w/sqm 800w/sqm 850w/sqm 800w/sqm 700w/sqm
Average Power 300w/sqm 380w/sqm 300w/sqm 380w/sqm 240w/sqm
Viewing Angle Horizontal 140(+70/-70) deg     Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Brightness control 256 level
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10％ ～ 90％
Work temperature ﹣20 ～﹢65℃
